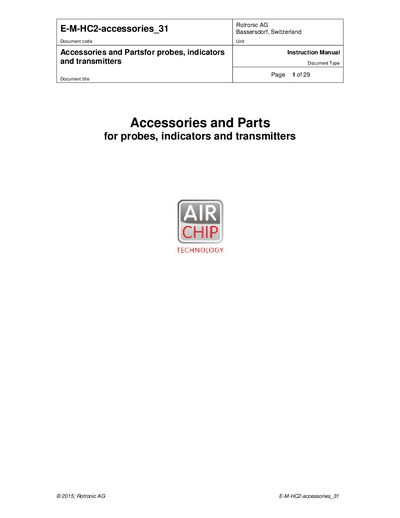

Rotronic HC2 Accessories and Parts Instruction Manual

About this manual

This instruction manual covers a wide range of accessories for Rotronic HC2 probes, indicators, and transmitters. It includes configuration software (HW4), service cables, supply voltage adapters, and various extension cables for different probe types like HC2-S and HC2-S3.

The document also provides specifications for digital interface adapters (USB, RS-232, Ethernet, RS-485), mounting hardware for through-wall and enclosure installations, calibration accessories, and dust filters. Technical specifications for power requirements, temperature ranges, and communication protocols are included for specific components.

What's inside

• Configuration and communication software
• Service cables for transmitters and indicators
• Supply voltage adapters
• Extension cables
• Digital interface adapters
• RS-485 converters and junction boxes
• Mounting hardware
• Calibration accessories
• Dust filters
• Maximum temperature limits

Specifications

Frequently asked questions

Which software is used to configure AirChip 3000 probes?

The ROTRONIC HW4 software (version 2.1.0 or higher) allows configuring the AirChip 3000 probes and instruments.

What is the approximate length of the AC3006 service cable?

The AC3006 Mini-USB service connector has an approximate length of 1.7 m.

What is the temperature range for the E2-01XX supply voltage adapter cable?

The cable temperature range is -40…70 °C, while the connector range is -50…100 °C.

What is the default humidity measurement range for the HC2 probes?

The default humidity range is 0…100%RH, or it can be set to a calculated parameter.
