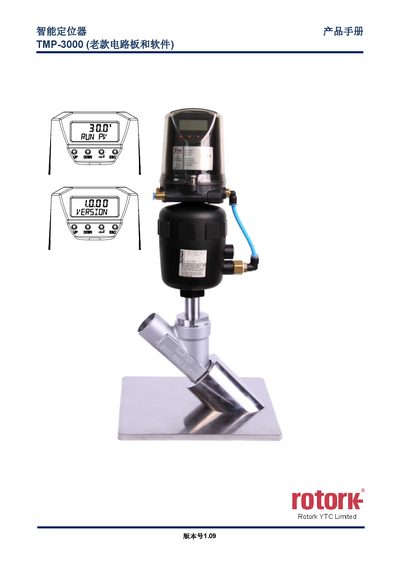

The manual provides specifications, installation, wiring, maintenance, auto‑calibration and error‑code information for the Rotork TMP‑3000 smart positioner.
The Rotork TMP‑3000 is a smart valve positioner that accepts 4–20 mA, 0–20 mA, 0–5 V or 0–10 V signals and offers features such as automatic calibration, fail‑freeze, LCD display and IP67 protection. It is designed for harsh industrial environments with high vibration resistance and low air consumption.
This product manual covers general information, detailed product description, installation steps, air and power connections, maintenance procedures, automatic calibration and PCB operation, error‑code troubleshooting, and a software map. Safety warnings and warranty details are also included. This manual is written in Chinese.
| Model | TMP-3000 |
|---|---|
| Input voltage | 24V DC ±10% , DC 260mA(@21.6VDC) |
| Input signal | 0~20 mA / 4~20 mA / 0~5 V / 0~10 V |
| Power consumption | < 5.8W |
| Supply pressure | 0~0.7 MPa (0~7 bar) |
| Flow rate | 20 LPM / 50 LPM |
| Air consumption | 0 LPM |
| Filter size | 5 µm |
| Working temperature | -10 ~ 60 °C (14 ~ 140 °F) |
| Protection rating | IP67 |
| Weight | 750 g (1.7 lb) |
It operates on 24 V DC ±10% with a current of 260 mA at 21.6 VDC.
Disconnect power and gas, remove the filter and clean it; the filter size is 5 µm.
The device is rated IP67.
The unit accepts 0–20 mA, 4–20 mA, 0–5 V or 0–10 V signals.
