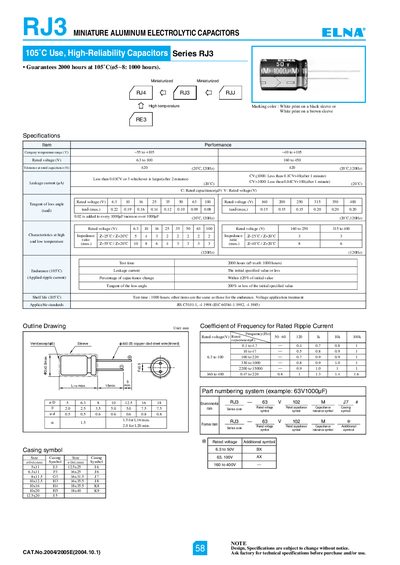

Technical specifications for RJ3 miniature aluminum electrolytic capacitors, covering voltage, temperature range, tolerance, leakage current and endurance.
The RJ3 series provides miniature aluminum electrolytic capacitors designed for high‑reliability applications. The document lists design parameters, performance limits, and dimensional drawings for various voltage and capacitance options.
Key data include rated voltage ranges from 6.3 V to 400 V, operating temperature from –55 °C to +105 °C, tolerance of ±20 % at rated capacitance, leakage current limits, loss‑angle tangent values, and endurance of 2000 hours at 105 °C. Additional information covers part numbering, marking, ESR, ripple current and impedance characteristics.
| Leakage current | ≤0.02 µA per 1000 µF over 1000 µF |
|---|---|
| Endurance at 105 °C | 2000 hours |
| Applicable standards | JIS C5101‑1,‑4 1998; IEC 60384‑1 1992,‑4 1985 |
They are guaranteed to endure 2000 hours at 105 °C.
