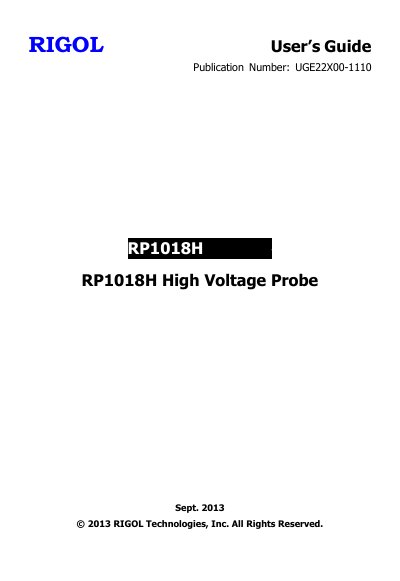

This user guide covers the operation, safety precautions, compensation adjustment, and specifications for the RIGOL RP1018H high voltage probe.
The RIGOL RP1018H is a high voltage probe designed to prevent unexpected shocks during high voltage measurement work. It features an input resistance of 200MΩ, a division ratio of 1000:1, and supports frequencies up to 150MHz with a bandwidth of DC~150MHz. This manual is written in Chinese.
| Division Ratio | 1000:1 |
|---|---|
| Input Resistance | 200MΩ |
| Max. Input (DC+AC peak) | 18kV CAT II |
| Bandwidth | DC~150MHz |
| Rise Time | 2.4 ns |
| Cable Length | 2M ± 0.2M |
The maximum input for DC+AC peak is 18kV CAT II.
Connect the probe to an oscilloscope, input a 200Hz square wave, and adjust the trimmer in the BNC plug for a flat-topped waveform.
Use a soft cotton cloth lightly moistened with alcohol and water, but do not submerge the probe.
