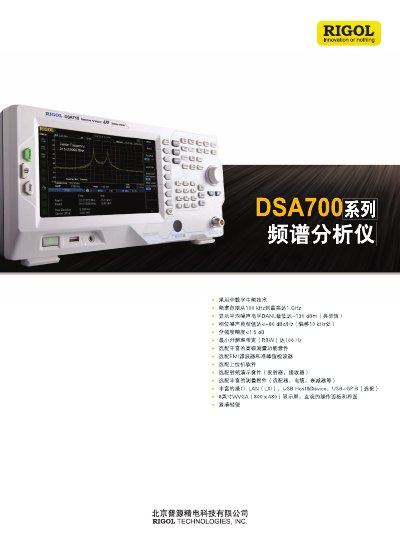

This manual covers the operation, technical specifications, and features of the RIGOL DSA700 series spectrum analyzers, including models DSA705 and DSA710.
This document provides a comprehensive guide for the RIGOL DSA700 series spectrum analyzers, detailing their functions, technical indicators, and operational instructions. It highlights the advantages of the all-digital intermediate frequency technology, such as improved measurement speed, higher amplitude accuracy, and the ability to resolve signals with very small frequency differences. This manual is written in Chinese.
| Frequency Range (DSA705) | 100 kHz to 500 MHz |
|---|---|
| Frequency Resolution | 1 Hz |
| Reference Frequency Accuracy | <1 ppm |
| Phase Noise (DSA705) | <-80 dBc/Hz @ 10 kHz offset |
| Phase Noise (DSA710) | <-100 dBc/Hz @ 100 kHz offset |
| Display Average Noise Level (DSA705) | <-90 dBm |
| Display Average Noise Level (DSA710) | <-110 dBm |
| Dimensions | 361.6 mm x 178.8 mm x 128 mm |
| Weight | 4.25 kg |
The instrument has a frequency resolution of 1 Hz.
The recommended calibration interval is 1 year.
