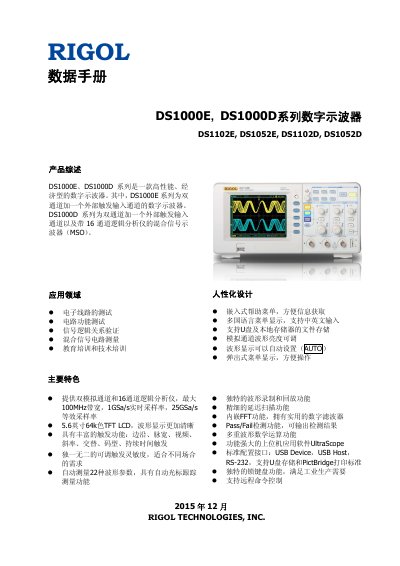

This manual covers the features, specifications, and operation of RIGOL DS1000E and DS1000D series digital oscilloscopes.
The document is a user manual for the RIGOL DS1000E and DS1000D series digital oscilloscopes. The DS1000E series features two analog channels plus an external trigger input, while the DS1000D series adds a 16-channel logic analyzer to function as a Mixed Signal Oscilloscope (MSO). Key capabilities include up to 100MHz bandwidth, 1GSa/s real-time sampling rate, and various advanced triggering functions. This manual is written in Chinese.
| Bandwidth | 100MHz (DS1102E/D), 50MHz (DS1052E/D) |
|---|---|
| Channels | 2 Analog + External Trigger (DS1000E), 2 Analog + 16 Logic (DS1000D) |
| Display | 5.6 inch 64k color TFT LCD |
| Input Impedance | 1MΩ±2%, 18pF±3pF |
| Max Input Voltage | 400V (DC+AC peak, CAT I) |
The DS1000D series includes a 16-channel logic analyzer, making it a Mixed Signal Oscilloscope (MSO), whereas the DS1000E does not.
The oscilloscope supports edge, pulse width, video, slope, alternate, code type, and duration triggers.
Yes, it has a Pass/Fail detection function that can output results via a dedicated port or screen display.
