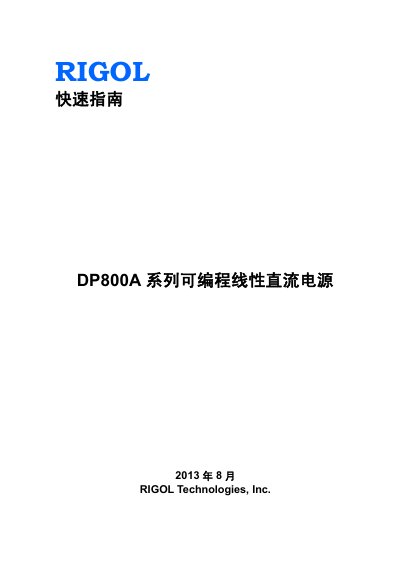

RIGOL DP800A Series Programmable Linear DC Power Supply Quick Guide

This quick guide covers safety, maintenance, operation, and troubleshooting for the RIGOL DP800A Series Programmable Linear DC Power Supply.

Brand: Rigol
Category: Power Management
Document type: Quick Start Guide
Language: English
Pages: 60
File format: PDF
File size: 1.7 MB
Published: 17 October, 2026
Updated: 17 October, 2026
MD5 checksum: B958E8AE82020487D1DFF395A8554604
PDF: RIGOL DP800A Series Programmable Linear DC Power Supply Quick Guide PDF

About this manual

This document serves as a quick guide for the RIGOL DP800A Series Programmable Linear DC Power Supply. It covers essential topics including safety requirements, maintenance and cleaning procedures, basic operation instructions, and troubleshooting steps. The guide is designed to help users quickly understand the front and rear panels, user interface, and fundamental usage of the device.

What's inside

Safety Requirements
Maintenance and Cleaning
Power Connection
Power On Check
Replacing Fuses
User Interface
Built-in Help System
Troubleshooting

Specifications

Input Frequency	50Hz–60Hz
Input Voltage Options	100V, 115V, 230V
Document Number	QGH0300 4-1110

Frequently asked questions

What display modes are available on the DP800A?

The power supply provides three kinds of display modes: normal, waveform, and dial.

How do I access the built-in help system?

Press the Help key to illuminate it, then press the desired key to get the corresponding help information.
