This quick guide covers safety requirements, maintenance, and basic operation for the RIGOL DP800 series programmable linear DC power supply.

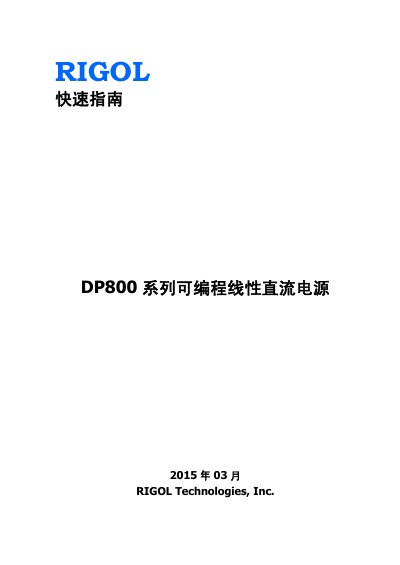

This document is a quick guide for the RIGOL DP800 series programmable linear DC power supply, published by RIGOL Technologies, Inc. in March 2015. It provides essential information on safety requirements, maintenance, cleaning, and the document structure to help users quickly understand the product's front and rear panels and basic operation methods.
The guide details the specific models included in the DP800 series, such as the DP832, DP831, DP821, and DP811, listing their channel counts and output voltage/current ratings. It includes instructions on connecting power, performing startup checks, and replacing fuses, along with descriptions of the user interface and troubleshooting steps. This manual is written in Chinese.
| Model DP832 Output | 30V/3A, 30V/3A, 5V/3A |
|---|---|
| Model DP831 Output | 8V/5A, 30V/2A, -30V/2A |
| Model DP821 Output | 60V/1A, 8V/10A |
| Model DP811 Output | 20V/10A, 40V/5A |
| Fuse for DP832/DP811 (100/115Vac) | T6.3A |
| Fuse for DP832/DP811 (230Vac) | T3.15A |
The DP832 model has three channels with outputs of 30V/3A, 30V/3A, and 5V/3A.
Use the voltage selector on the rear panel to match the input voltage (100, 115, or 230) as per Table 2.
