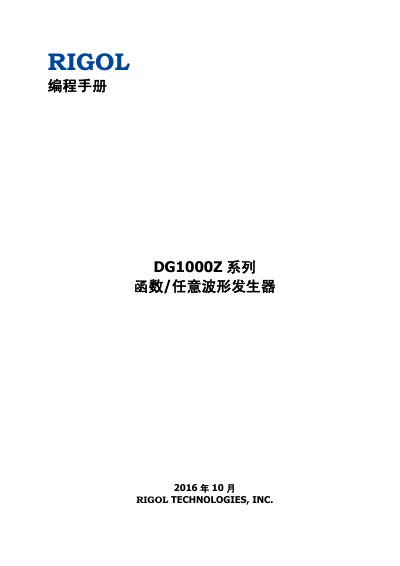

RIGOL DG1000Z Series Function/Arbitrary Waveform Generator Programming Manual

About this manual

This document provides a comprehensive guide to remotely controlling the RIGOL DG1000Z Series Function/Arbitrary Waveform Generators. It explains how to establish communication through USB, LAN, or GPIB interfaces using the Ultra Sigma PC software or third-party tools like NI Measurement & Automation Explorer.

The manual details the SCPI (Standard Commands for Programmable Instruments) command system specific to this series. It includes a complete list of commands organized by subsystem (e.g., :SOURce, :TRIGger), application examples demonstrating basic functions such as outputting sine waves and arbitrary waveforms, and programming instances using Visual C++, Visual Basic, LabVIEW, and Excel. This manual is written in Chinese.

What's inside

• Establishing Remote Communication
• Remote Control Methods
• SCPI Command Introduction
• :SOURce:APPLy Command
• :TRIGger Command
• Application Examples
• Programming Instances (Visual C++, LabVIEW)
• Command List Appendix

Specifications

Frequently asked questions

What are the maximum output frequencies for the DG1062Z, DG1032Z, and DG1022Z models?

The manual lists the maximum output frequency as 60MHz for the DG1062Z, 30MHz for the DG1032Z, and 25MHz for the DG1022Z.
