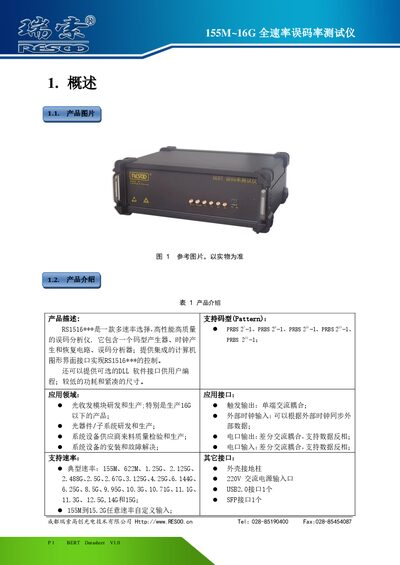

The RESOO RS1516*** full-rate BER tester datasheet provides specifications, performance metrics, interfaces, and ordering information.
The RESOO RS1516*** is a multi‑rate, high‑performance bit error rate tester designed for optical transceiver development, system equipment testing, and fault diagnosis. It integrates a pattern generator, clock recovery, and error analysis with a PC‑based graphical interface and optional DLL for user programming.
The device supports typical rates from 155 Mbit/s up to 15 Gbit/s, with custom rates between 155 Mbit/s and 15.2 Gbit/s, and offers a range of interfaces including USB 2.0, SFP, SMA, trigger output, and differential I/O. Power consumption is ≤20 W, and the unit operates from 100‑240 VAC at 50/60 Hz. This manual is written in Chinese.
| Rate range | 155–15200 Mbit/s |
|---|---|
| Power consumption | ≤20 W |
| Operating temperature | -10 °C to +55 °C |
| Input voltage | 100‑240 VAC, 50/60 Hz |
| Dimensions | 340 × 115 × 240 mm |
| Weight | 4 kg |
| Output amplitude (differential) | 200–1200 mV |
| Frequency accuracy | ±50 ppm |
The software runs on Windows XP or later, requires .NET Framework 3.5 or higher, and can be started directly without a separate installation.
