Resistron RES-420 GB Temperature Controller Operating Instructions

Operating instructions for the Resistron RES-420 GB temperature controller, covering installation, startup, operation, and maintenance.

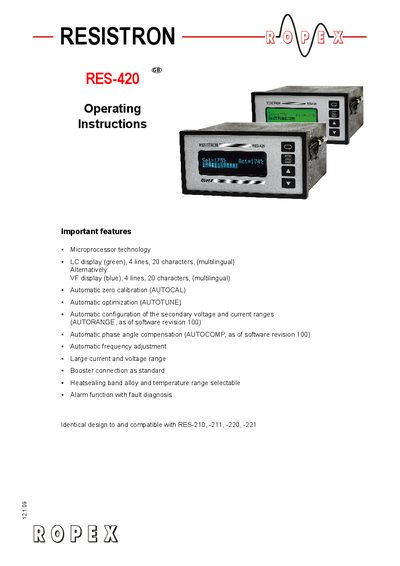

Resistron RES-420 GB Temperature Controller Operating Instructions - cover page
Brand
Resistron
Document type
User Manual
Language
English
Pages
50
File format
PDF
File size
2.3 MB
Published
16 October, 2026
Updated
16 October, 2026
MD5 checksum
BE0C89833A28A1A47308E76CC28828DC
PDF
Resistron RES-420 GB Temperature Controller Operating Instructions PDF

About this manual

The Resistron RES-420 GB is a microprocessor-based temperature controller designed for heating and temperature control of heatsealing bands. It features automatic functions such as zero calibration (AUTOCAL), optimization (AUTOTUNE), and phase angle compensation (AUTOCOMP). The device utilizes LC or VF displays to monitor the resistance of the band, which varies with temperature, ensuring precise control.

What's inside

  • Safety and warning notes
  • Application
  • Principle of operation
  • Description of the controller
  • Accessories and modifications
  • Technical data
  • Dimensions/front panel cutout
  • Installation
  • Startup and operation
  • Controller functions

Specifications

Display typeLC display (green) or VF display (blue)
Sampling rate50 times per second at 50Hz
Warranty period12 months following delivery date

Frequently asked questions

What heatsealing bands are suitable for this controller?

Bands must have a positive minimum temperature coefficient, such as Alloy-20 (TCR = 1100 ppm/K) or NOREX (TCR = 3500 ppm/K).

Is an impulse transformer required?

Yes, a suitable impulse transformer designed according to VDE 0570/ EN 61558 with a one section bobbin is necessary.

What current transformers are compatible?

Only the original ROPEX PEX-W2 or PEX-W3 current transformer may be used.

Download PDF (2.3 MB)
