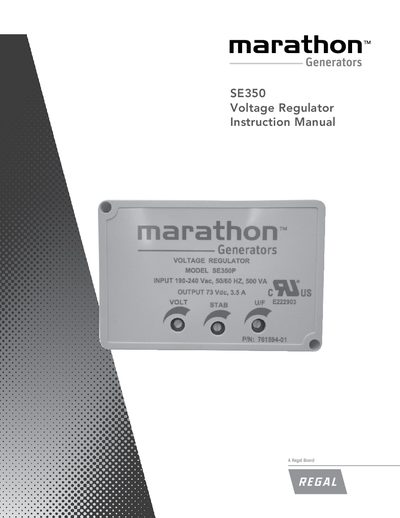

The Regal SE350E Voltage Regulator Instruction Manual provides specifications, installation steps, adjustment procedures, and troubleshooting guidance.
The SE350E is an encapsulated electronic voltage regulator that controls the output of a brushless AC generator by regulating current into the exciter field. It operates from 190‑240 Vac and delivers up to 105 Vdc output power.
The manual covers the regulator’s specifications, mounting, wiring diagrams, voltage and stability adjustments, roll‑off frequency selection, start‑up and operational test procedures, and a troubleshooting table for common symptoms.
| Continuous Output Power | 73 Vdc at 3.5 A (255 W) |
|---|---|
| Forcing Output Power | 105 Vdc at 5 A (525 W) |
| Regulation Accuracy | ±1.0 % |
| Weight | 7.4 oz |
| Operating Temperature | -40 °C to 60 °C |
Turn the screwdriver‑adjustable potentiometer; rotating clockwise increases the generator output voltage.
A 4 A, 250 V, 5 × 20 mm fuse (Part A‑527066) is supplied with the regulator.
