RealKing KSC-7118 Generator Over‑Voltage/Over‑Current Monitor User Manual

The RealKing KSC-7118 manual explains features, wiring, settings, and installation for the generator over‑voltage and over‑current monitor.

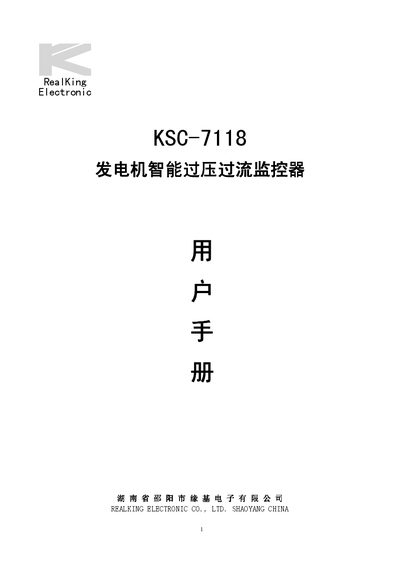

RealKing KSC-7118 Generator Over‑Voltage/Over‑Current Monitor User Manual - cover page
Brand
KSC-7118发电机智能过压过流监控器
Category
Other
Document type
User Manual
Language
Chinese
Pages
5
File format
PDF
File size
86 KB
Published
13 March, 2012
Updated
29 September, 2026
MD5 checksum
2EFF3F65A857A20EAA0FBECB4385D66B

About this manual

The KSC-7118 is an intelligent monitor for small‑ to medium‑size generators that protects against over‑voltage, under‑voltage and three‑phase over‑current. It uses an industrial‑grade microcontroller with high reliability, fast response and strong anti‑interference capability.

The manual provides a schematic layout, principle of operation, technical specifications, wiring diagram, step‑by‑step adjustment procedures, and installation dimensions. Default protection values are preset, and users can modify voltage, current thresholds and timing via the set key and the four‑digit display. This manual is written in Chinese.

What's inside

  • Overview
  • Diagram
  • Principle and Functions
  • Technical Parameters
  • Wiring Diagram
  • Usage Instructions
  • Installation Dimensions
  • Precautions

Specifications

Input voltage signalPT100V (voltage transformer) and 230V phase voltage
Input current signalCT5A (current transformer) 1~3 phase any
Output signalRelay contacts: one NO, one NC, capacity 5A/220VAC 28VDC
Operating temperature-10 °C ~ +50 °C
Relative humidity≤90 %
Maximum altitude≤2500 m

Frequently asked questions

How do I set the over‑voltage monitoring value?

Press the set key, use the “+” and “‑” buttons to adjust; when the first digit shows “1”, the range is 440 V ~ 550 V (default 500 V).

What are the default protection settings?

The factory defaults are: over‑voltage 500 V, detection time 1.0 s, recovery 120 s; over‑current 4 A, detection time 1.0 s, recovery 120 s; under‑voltage disabled.

How should the current transformer be connected?

Connect the secondary side (5 A) of the CT to the corresponding terminals; you may connect one, two, or three phases as needed.
