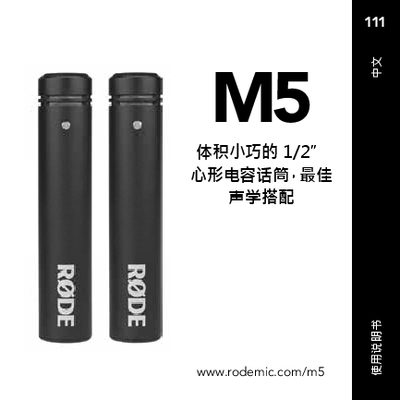

The RØDE M5 is a compact 1/2" cardioid condenser microphone with low‑noise circuitry, 20 Hz‑20 kHz response and up to a 10‑year warranty.
The M5 is a studio‑quality condenser microphone designed for recording music, film location audio and indoor dialogue. It features a 1/2" gold‑plated diaphragm, cardioid pickup pattern, all‑metal body, ultra‑low‑noise transformer circuit and advanced surface‑mount technology.
The microphone requires 24 V or 48 V phantom power, connects via a 3‑pin XLR, and weighs only 80 g. It ships with two RM5 mic clips and windshields, and includes instructions for installation, maintenance, and warranty registration for a free 10‑year extension. This manual is written in Chinese.
| Diaphragm size | 1/2" |
|---|---|
| Polar pattern | Cardioid |
| Frequency response | 20 Hz – 20 kHz |
| Output impedance | 200 Ω |
| Sensitivity | –34 dB re 1 V/Pa (20 mV @ 94 dB SPL) |
| Equivalent noise | 19 dB A SPL |
| Maximum SPL | 140 dB SPL |
| Phantom power | 24 V (P24) or 48 V (P48) |
| Output connector | 3‑pin XLR |
The M5 requires phantom power of either 24 V (P24) or 48 V (P48) supplied via its XLR connection.
After online registration, the M5 receives a free warranty extension up to ten years.
