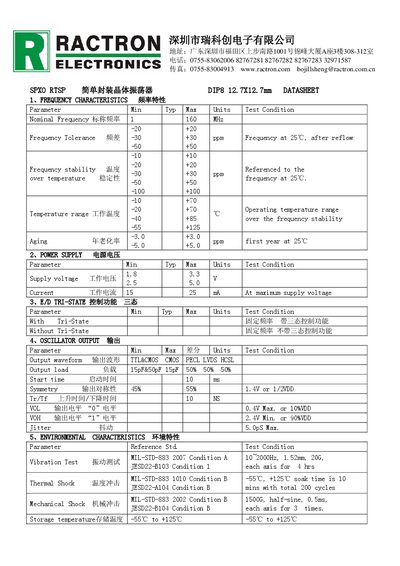

Datasheet for Ractron SPXO RTSP crystal oscillator in a DIP8 package, covering frequency, supply, output and environmental specs.
The SPXO RTSP is a simple‑package crystal oscillator offered by Ractron in a 12.7 × 12.7 mm DIP8 form factor. It provides both TTL/CMOS and differential output options with selectable tri‑state control.
The document lists detailed electrical characteristics, supply voltage range, frequency tolerance, start‑up time, jitter, and environmental test results such as temperature stability and vibration resistance. This manual is written in Chinese.
| Start‑up time | 10 ms |
|---|---|
| Jitter | 5.0 pS max |
The start‑up time is specified as 10 ms.
