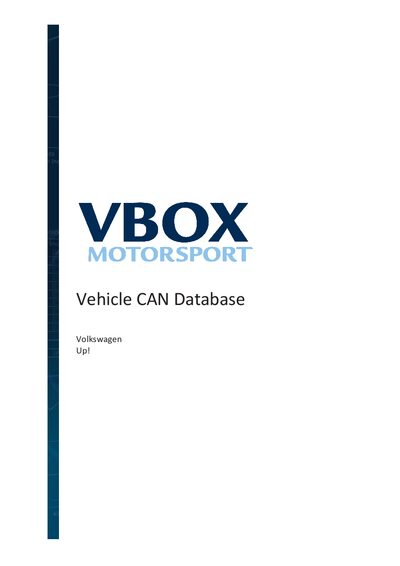

Racelogic Volkswagen Up! CAN Database Application Note

About this manual

The document supplies the CAN database for the Volkswagen Up! vehicle, enabling Racelogic VCI (Vehicle CAN Interface) products to read and log vehicle data. Users can select the vehicle in the VBox Video setup software or download the database file for other Racelogic products.

The guide explains that CAN data must be accessed directly from the vehicle's CAN bus (not the OBD connector) and provides wiring details, required cable part numbers, and the required 500 kbaud bus configuration. It also lists the available CAN channels and signals.

What's inside

• Overview
• Wiring Connection
• Available CAN Channels
• Support

Specifications

Frequently asked questions

How do I select the Volkswagen Up! vehicle in the VBox Video setup?

Open VBox Video Setup, go to Settings → CAN → Vehicle database, choose "Volkswagen" and then "Up!" and tick the desired signals.

What wiring is required to connect the VBox Video HD2 to the vehicle CAN bus?

CAN data must be accessed directly from the vehicle CAN bus (not the OBD connector) using a RLCAB015L cable and configuring the bus at 500 kbaud.
