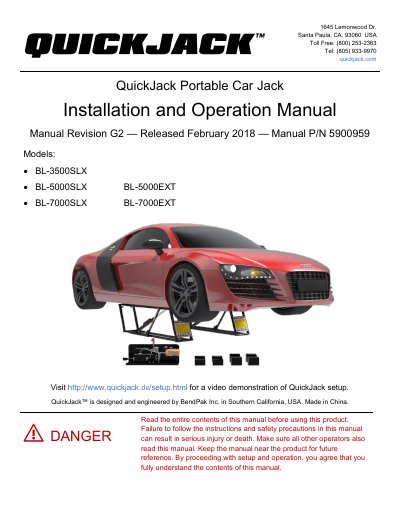

QuickJack Portable Car Jack Installation and Operation Manual

About this manual

The document is the official Installation and Operation Manual for the QuickJack portable car jack system. It covers five specific models: BL-3500SLX, BL-5000SLX, BL-7000SLX, BL-5000EXT, and BL-7000EXT. The manual is designed to ensure safe setup and operation by authorized personnel.

What's inside

• Introduction
• Setup
• Operation
• Safety
• Maintenance
• Troubleshooting
• Specifications
• Wiring Diagrams

Frequently asked questions

What is the maximum weight each QuickJack model can lift?

The BL-3500SLX lifts up to 3,500 lbs, while the BL-5000SLX and BL-5000EXT lift up to 5,000 lbs, and the BL-7000SLX and BL-7000EXT lift up to 7,000 lbs.

What is the minimum compressive strength required for the floor surface?

The floor surface must have a minimum compressive strength of 500 PSI.

What is the minimum wire gauge required if an extension cord must be used?

If an extension cord is necessary, it must be No. 14 AWG minimum.
