Quatech QSC(LP)-200/300 User Manual

The Quatech QSC(LP)-200/300 User Manual provides installation, configuration, and operation instructions for the four‑channel RS‑422/485 PCI communications…

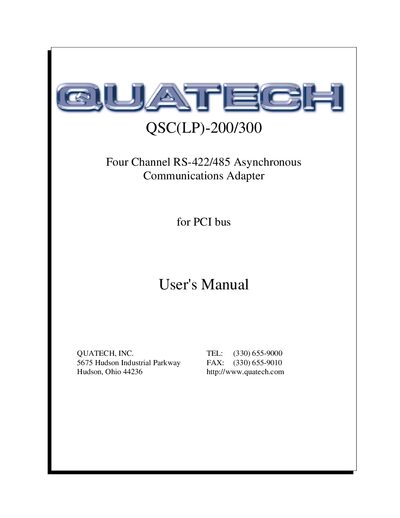

Quatech QSC(LP)-200/300 User Manual - cover page
Brand
Quatech
Category
Other Computer Accessories
Document type
User Manual
Language
English
Pages
34
File format
PDF
File size
522 KB
Published
29 September, 2026
Updated
29 September, 2026
MD5 checksum
29C9190ED32280026DB9A0CC6EAAEA41

About this manual

This manual describes the Quatech QSC(LP)-200/300, a four‑channel RS‑422/485 asynchronous communications adapter for PCI‑bus PCs. It outlines the device features, hardware configuration options, jumper settings, and the automatic BIOS/OS configuration. Detailed sections cover signal connections, optional surge‑suppression upgrades, and high‑speed UART clock options.

Installation steps, resource mapping, technical specifications, and troubleshooting guidance are provided. The document also includes warranty information, compliance declarations, and contact details for technical support.

What's inside

  • General Information
  • Hardware Configuration
  • Hardware Installation
  • PCI Resource Map
  • Specifications
  • Troubleshooting
  • Warranty Information

Specifications

Bus interfacePCI, 32-bit bus, Universal Signalling Voltage
Dimensionsapprox. 4.725" x 2.5"
Serial ports controller16750 with 64-byte FIFOs
InterfaceCustom cable to four female D‑9 connectors
TransceiversMAX-3076E or compatible
Differential output (RS‑422)2 V min. with 50‑Ω load
Differential output (RS‑485)1.5 V min. with 27‑Ω load
Output rise/fall time15 ns max.
Differential input threshold-0.2 V min., -0.05 V max.
Input resistance96 kΩ min.
Input current-100 µA min., +125 µA
Power requirements+5 V, approx. 250 mA
Operating temperature0 °C to 70 °C
Storage temperature-50 °C to 80 °C
Humidity10 % to 90 %

Frequently asked questions

What is the warranty period for the QSC(LP)-200/300?

Quatech, Inc. warrants the QSC(LP)-200/300 to be free of defects for five (5) years from the date of purchase.

How can I increase the UART clock speed for higher baud rates?

Install the jumper on pins 17 and 18 (Force High‑Speed UART Clock) to multiply the UART input clock frequency by eight.

Download PDF (522 KB)
