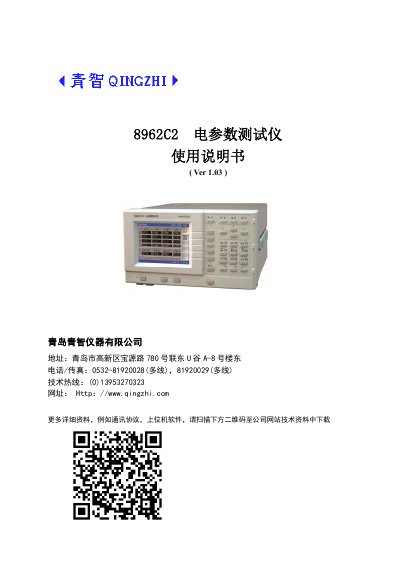

Qingzhi 8962C2 Electrical Parameter Tester User Manual

This manual provides operating instructions for the Qingzhi 8962C2 electrical parameter tester, covering steady-state and transient testing, waveform…

Brand: Qingzhi
Category: Other Electronics
Document type: User Manual
Language: Chinese
Pages: 29
File format: PDF
File size: 4.3 MB
Published: 17 October, 2026
Updated: 17 October, 2026
MD5 checksum: B57C830F9137160024325E11424AF34E
PDF: Qingzhi 8962C2 Electrical Parameter Tester User Manual PDF

About this manual

The Qingzhi 8962C2 Electrical Parameter Tester is a device designed to measure steady-state and transient electrical parameters such as voltage, current, power, and frequency. It features a 32-bit ARM processor with a speed of 72M and a high-speed A/D converter operating at 200k. The instrument includes a 5.6-inch color LCD display and supports a measurement frequency range of 5 to 800 Hz. This manual is written in Chinese.

What's inside

Conventional Introduction
Function Introduction
Basic Operation
Input Connection
Steady-State Testing
Waveform Display
Harmonic Display
Unbalance Display
Transient Testing
Data Management

Specifications

Processor	32-bit ARM, 72M speed
A/D Converter Speed	200k
Display	5.6-inch color LCD
Measurement Frequency Range	5 to 800 Hz
Filtering Modes	Off, 500Hz, 5.5kHz
Steady-State Data Records	65536 records
Voltage Storage Records	200 records
Waveform Sampling Rates	3200 to 25600 points/sec

Frequently asked questions

What is the measurement frequency range of the 8962C2?

The measurement frequency range is 5 to 800 Hz for AC signals.

What are the available filtering modes?

The available filtering modes are Off, above 500Hz, and above 5.5kHz.

How many steady-state data records can be stored?

The instrument can store up to 65,536 steady-state data records.
