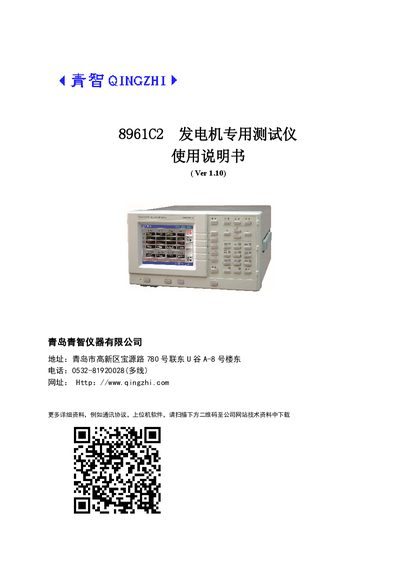

The Qingzhi 8961C2 Generator Test Instrument User Manual provides safety guidelines, connection instructions, test functions, data management, and technical…
This manual introduces the 8961C2 generator test instrument, covering general information, safety notices, warranty terms, and the contents of the supplied kit. It explains the instrument’s hardware features, display, and compliance with relevant standards.
Detailed chapters describe the instrument’s operation, input wiring, various test modes (steady‑state, waveform, harmonic, unbalance, adjustment, fluctuation, step‑up/down, recording), parameter settings, computer communication (RS232/RS485/USB), data management, routine maintenance, fault troubleshooting, and full technical specifications. This manual is written in Chinese.
| Voltage measurement range | UN = 600 V |
|---|---|
| Frequency range | 5 – 800 Hz |
| Instrument weight | ≈ 4 kg |
| Power consumption | < 10 VA |
| Maximum dimensions (W×H×D) | 308 × 186 × 407 mm |
The instrument provides RS232, RS485, and USB hardware interfaces for direct communication with a computer.
It can be powered from AC 85‑265 V 50/60 Hz or DC 100‑300 V.
The instrument is covered by a 1.5‑year warranty; accessories have a 90‑day warranty.
