Qingdao Zhongdian Zhongyi GER-10 Ground Penetrating Radar User Manual

The GER-10 Ground Penetrating Radar user manual provides setup, operation, data handling and safety instructions for the portable system.

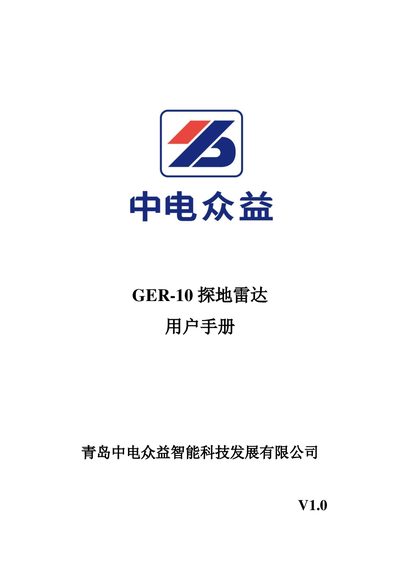

Qingdao Zhongdian Zhongyi GER-10 Ground Penetrating Radar User Manual - cover page
Brand
Qingdao Zhongdian Zhongyi
Category
Other
Document type
User Manual
Language
Chinese
Pages
47
File format
PDF
File size
2.9 MB
Published
30 September, 2026
Updated
30 September, 2026
MD5 checksum
3AC7EB93871EF2F9831F33751B34BDFD
PDF
Qingdao Zhongdian Zhongyi GER-10 Ground Penetrating Radar User Manual PDF

About this manual

This manual introduces the GER-10 ground‑penetrating radar, its components, and how to unpack and verify the equipment. It describes the main unit, protective case, batteries, charger, software and optional accessories.

The guide covers hardware connections, system functions, data acquisition modes, playback, data transfer, battery management, and safety precautions. Appendices include charger instructions and battery specifications. This manual is written in Chinese.

What's inside

  • Introduction
  • Hardware Connection
  • System Functions
  • Data Acquisition
  • Data Playback
  • Data Transfer and Deletion
  • Battery and Charger
  • Appendices

Specifications

Display size10.4 inches
Display resolution1024×768 pixels
USB portUSB 3.0
Serial portRS232
Main control port8‑pin connector
Internal storage128 GB
Battery runtime (full charge)≈3 hours
Charging time (per battery)1.5–3 hours
IP protection ratingIP65

Frequently asked questions

How long does the GER-10 operate on a fully charged battery?

The battery provides about three hours of operation on a full charge.

What is the IP rating of the GER-10 enclosure?

The device is rated IP65 for dust and water protection.

Download PDF (2.9 MB)
