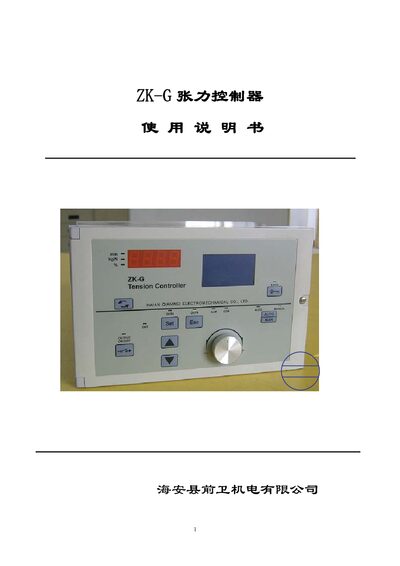

The manual provides product overview, installation, wiring, operation, and troubleshooting for the ZK-G tension controller.
The ZK-G tension controller from Qianwei uses a 128×96 graphic LCD with bilingual display and offers high‑precision tension control for paper, printing, packaging and textile lines. It can output 0‑24 V/4 A to drive magnetic powder clutches or brakes and also 0‑5 V or –5 V to +5 V signals for other actuators.
The document covers mechanical installation options, electrical connection guidelines, menu navigation, tension measurement setup, debugging, additional functions such as cone‑tension control, and a full troubleshooting and maintenance section. This manual is written in Chinese.
| Primary Output | 0‑24 V / 4 A |
|---|---|
| Auxiliary Output | 0‑5 V or –5 V to +5 V |
| Power Supply | 92‑240 VAC, 50/60 Hz |
| Dimensions | 246 mm (W) × 154 mm (H) × 156.5 mm (D) |
| Measurement Accuracy | ±0.2 %FS ±1 digit |
| Sampling Period | 100 ms |
| Control Algorithm | PI (Proportional‑Integral) |
| Communication Interfaces | RS232, RS485 |
It can output 0‑24 V/4 A to directly drive magnetic powder clutches or brakes, and also 0‑5 V or –5 V to +5 V signals for other devices.
The controller can be mounted horizontally, vertically, or in a panel opening, and weak‑signal cables must be kept away from power lines to avoid interference.
The device includes optional RS232 or RS485 communication interfaces for connection to PLCs or PCs.
The tension measurement accuracy is ±0.2 %FS with a resolution of one digit.
