The guide provides installation, wiring, configuration, operation, and service information for Pyragon Transmation 2000 Series temperature transmitters.

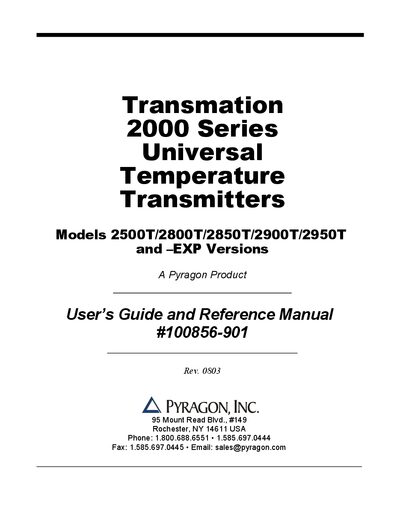

This User’s Guide and Reference Manual describes the Transmation 2000 Series Universal Temperature Transmitters, including the 2500T, 2800T, 2850T, 2900T, 2950T and –EXP versions. It covers safety information, product features such as isolation, RFI protection, wide ambient temperature range, 4‑20 mA output, and support for multiple input types.
The manual is organized into sections on general information, mounting options (surface, SNAPTRACK®, DIN rail, NEMA 4X, NEMA 4 explosion‑proof), electrical connections, PC‑based and push‑button configuration, HART® protocol setup, and factory service with a five‑year warranty. Detailed procedures and illustrations guide qualified personnel through installation, calibration, and troubleshooting.
| Output signal | 4 to 20 mA |
|---|---|
| Supported input types | 8 thermocouple types, 12 RTD types, millivolt, ohm |
| Ambient temperature range | Wide |
The Model 2500T transmitter is calibrated and configured via any PC that supports RS‑232 using the provided software.
