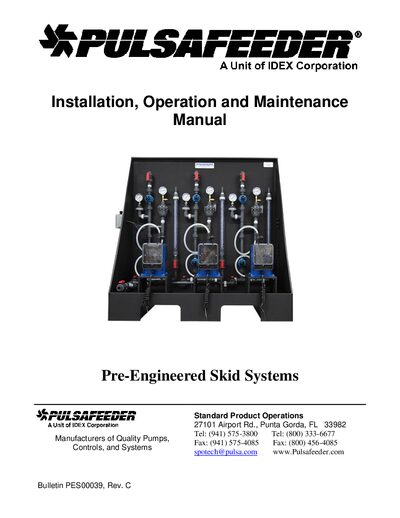

Installation, operation, and maintenance guide for Pulsafeeder Pre-Engineered Skid Systems, covering safety, layout, calibration, and troubleshooting.
This manual provides detailed instructions for installing, operating, and maintaining Pulsafeeder Pre‑Engineered Skid Systems. It includes safety warnings, component descriptions, system overviews for both supply and process sides, and step‑by‑step installation procedures.
The guide also explains flow‑calibration methods, routine maintenance tasks, and a troubleshooting chart to help resolve common issues such as air in the suction line or valve failures. Appendix tables list factory‑preset component settings for quick reference.
| Maximum suction lift | 5 ft (1.5 m) |
|---|---|
| Drain plug size | 1/2 in NPT |
| Junction box rating | NEMA 6P |
| Skid frame material | 1/2" HDPE, UV‑resistant |
Wear protective clothing, disconnect the pump(s) from power, depressurize the system, and drain chemicals from the lines before any work.
Inspect fittings for tightness, verify tubing integrity, ensure the suction source level is above the foot valve, and remove any air pockets or clogs.
