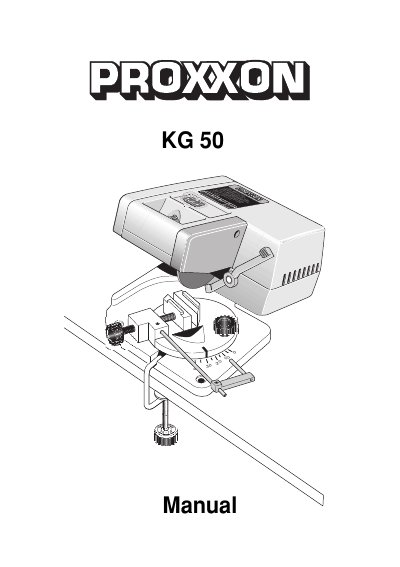

The manual provides safety instructions, setup, operation, maintenance and spare‑parts information for the Proxxon KG 50 capping device.
The Proxxon KG 50 capping device is a precision power tool for cutting metal, wood and plastic bars up to about 10 mm diameter. The manual begins with general safety instructions, describing required protective gear, safe handling, and the importance of keeping the yellow protective cover in place.
It then details the machine’s construction, installation of the cutting blade, step‑by‑step operating procedures for straight, miter and severing cuts, adjustment of the longitudinal stop, and routine service and maintenance. A spare‑parts list and EU conformity declaration conclude the document.
| Device foot dimensions | ca. 100/135 x 132 mm |
|---|---|
| Height | ca. 100 mm |
| Width | ca. 140 mm |
| Vice jaw width | 30 mm |
| Span | 20 mm |
| Weight | ca. 1.4 kg |
| Motor voltage | 220‑240 V, 50/60 Hz |
| Power consumption | 85 W |
| Speed | 8000 /min |
| Cutting speed | ca. 25 m/s |
| Noise emission | < 70 dB(A) |
| Protection class | II |
