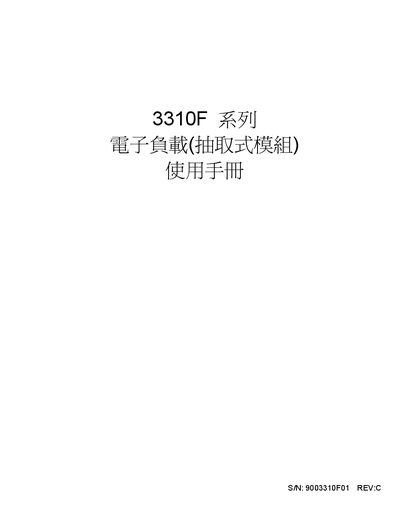

The Prodigit 3310F series electronic load user manual provides safety guidelines, specifications, installation, operation, and testing procedures.
The 3310F series electronic load is designed for testing DC power supplies, battery life, and electronic components. It can be installed in 3300F, 3302F, or 3305F chassis, supporting up to four load modules with GPIB, RS‑232, USB, and LAN interfaces.
The manual covers safety precautions, environmental limits (up to 80 % relative humidity and 2000 m altitude), installation steps, detailed operation modes (constant current, constant resistance, constant voltage, constant power, dynamic load), and test functions such as OCP, OPP, and short‑circuit protection. This manual is written in Chinese.
| Voltage range (3310F) | 0 – 60 V |
|---|---|
| Current range (3310F) | 0 – 30 A |
| Maximum power (3310F) | 150 W |
| Maximum relative humidity | 80 % |
| Maximum operating altitude | 2000 m |
It is a Safety Class 1 instrument with a protective earth terminal.
The 3310F operates from 0 V to 60 V and from 0 A to 30 A.
The chassis must be connected to an electrical ground via the third wire of a three‑conductor power cable.
Indoor use, up to 80 % relative humidity, and up to 2000 m altitude.
