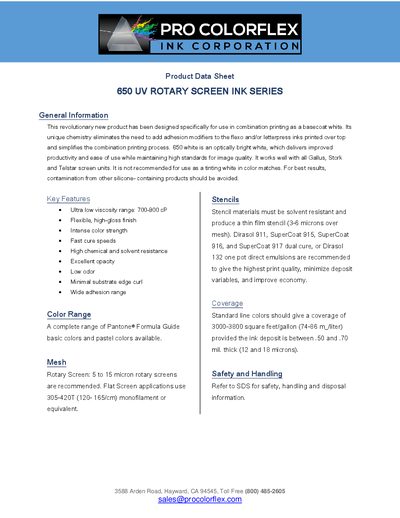

The Procolorflex 650 UV Rotary Ink Series data sheet details features, specifications, and recommended screen and stencil materials for combination printing.
The 650 UV Rotary Ink Series is a basecoat white ink formulated specifically for combination printing, eliminating the need for adhesion modifiers when overprinted with flexo or letterpress inks. It delivers an optically bright white with high gloss, opacity, and low odor, suitable for use with Gallus, Stork, and Telstar screen units.
Key features include ultra‑low viscosity (700‑900 cP), fast cure speeds, high chemical and solvent resistance, and a wide adhesion range. Recommended rotary screen mesh is 5‑15 µm, while flat‑screen applications use 305‑420T (120‑165 cm⁻¹) monofilament. Solvent‑resistant stencil materials such as Dirasol 911 or SuperCoat 915‑917 are advised for optimal print quality.
| Viscosity range | 700‑900 cP |
|---|---|
| Recommended rotary screen mesh | 5‑15 µm |
| Flat screen mesh recommendation | 305‑420T (120‑165 cm⁻¹) monofilament or equivalent |
| Coverage per gallon | 3000‑3800 sq ft/gal (74‑86 m²/L) |
It is designed specifically for combination printing as a basecoat white ink.
It works well with all Gallus, Stork and Telstar screen units.
Stencil materials such as Dirasol 911, SuperCoat 915‑917 dual cure, or Dirasol 132 one‑pot direct emulsions are recommended.
