The Model 910 is a bench‑top ESD discharge simulator with adjustable ±5 V‑8 kV range, dual polarity supply and optional CDM module.

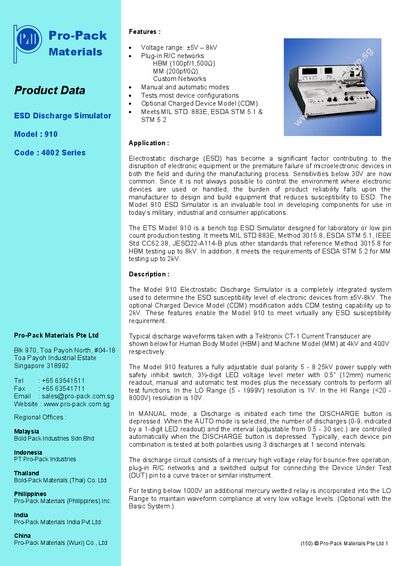

The Model 910 ESD Discharge Simulator is a bench‑top system for laboratory and low‑pin‑count production testing. It provides a fully adjustable dual‑polarity power supply from ±5 V to 8 kV, manual and automatic test modes, and plug‑in R/C networks for Human Body Model (HBM) and Machine Model (MM) testing. Optional accessories include a Charged Device Model (CDM) module and programmable socket modules for various device packages.
The device meets MIL STD 883E, ESDA STM 5.1/5.2, IEEE CC62.38 and other standards. It features a mercury‑displacement HV relay, 3½‑digit LED voltage display, and a range of safety and control options such as remote discharge control via 5 V logic.
| Resolution | LO: ±1 V, HI: ±10 V |
|---|---|
| Accuracy | Better than 5 % |
| Power input | 100‑240 VAC, 50/60 Hz |
| Dimensions (case) | 16"W x 18"D x 7"H (41 × 46 × 16 cm) |
| Weight | 20 lb (9.1 kg) |
| Auto mode discharges | 0‑9 per cycle |
| Auto mode interval | 0.3‑30 sec |
| HV switch type | Mercury displacement, SPST relay |
| HBM R/C network | 100 pF capacitor, 1500 Ω resistor |
| MM R/C network | 200 pF capacitor, 0 Ω resistor |
| CDM option | Plug‑in module with standard banana jack output |
The AUTO mode allows setting from 0 to 9 discharges per cycle.
It accepts 100 V, 110 V, 220 V or 240 V AC at 50/60 Hz.
