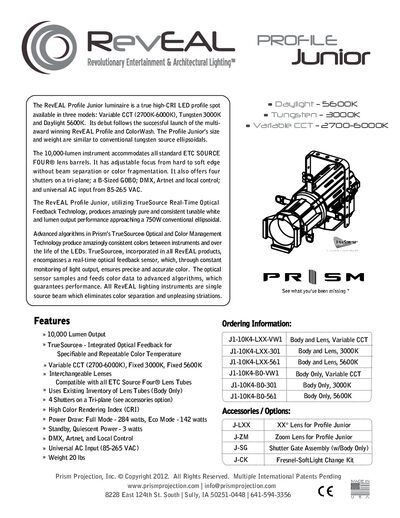

The Prism Projection RevEAL Profile Junior (J1-10K4-LXX) is a high‑CRI 10,000 lm LED profile spot with adjustable focus, four shutters, DMX/Artnet control…
The RevEAL Profile Junior is a high‑CRI LED profile spot delivering 10,000 lumens at daylight 5600 K. It fits all standard ETC SOURCE FOUR® lens barrels and offers adjustable focus from hard to soft edge without color fragmentation.
Key features include four shutters on a tri‑plane, a B‑sized gobo, DMX, Artnet and local control, and a universal AC input range of 85‑265 VAC. Power consumption is 284 W in full mode (142 W eco) with a standby draw of only 3 W, and the unit weighs 20 lb.
| Lumen Output | 10,000 lm |
|---|---|
| Power Draw (Full Mode) | 284 W |
| Power Draw (Eco Mode) | 142 W |
| Weight | 20 lbs |
| Universal AC Input | 85‑265 VAC |
| Color Temperature | 5600 K (Daylight) |
| Shutters | 4 shutters on a tri‑plane |
| Lens Compatibility | All ETC Source Four® lens barrels |
| Control Protocols | DMX, Artnet, Local Control |
| Standby Power | 3 W |
It produces 10,000 lumens.
Full‑mode power draw is 284 watts.
The unit supports DMX, Artnet, and local control.
It weighs 20 lb.
