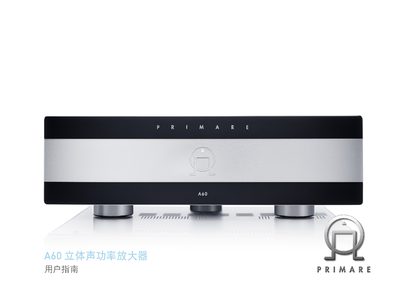

The Primare A60 stereo power amplifier user guide explains setup, connections, specifications, and safety for optimal sound.
This user guide walks you through unpacking, placement, and connecting speakers and inputs for the Primare A60 stereo power amplifier. It includes quick‑start steps, detailed wiring diagrams, and instructions for using the back‑panel connectors such as RS232 and trigger I/O.
The manual also provides technical specifications, performance data, and safety information required for proper installation and maintenance. Additional sections cover break‑in (煲机) procedures, best‑sound tips, and troubleshooting advice. This manual is written in Chinese.
| Output Power (8 Ω) | 2 × 250 W |
|---|---|
| Output Power (4 Ω) | 2 × 500 W |
| THD+N (250 W, 8 Ω) | < 0.02 % |
| THD+N (10 W, 8 Ω) | < 0.002 % |
| Frequency Response | 20 Hz – 20 kHz, –0.5 dB |
| Gain (Unbalanced) | 26 dB |
| Gain (Balanced) | 20 dB |
| Input Impedance | 20 kΩ |
| Output Impedance | 0.01 Ω |
| Standby Power Consumption | 0.5 W |
The A60 offers two pairs of speaker terminals per channel, allowing either single‑wire or dual‑wire connections for each speaker.
The amplifier has two RCA and two XLR inputs that can be switched between balanced and unbalanced modes.
Leave at least 50 mm of space on all sides and above the unit for proper ventilation.
Yes, the back panel includes an RS232 port for connecting the amplifier to a control system.
