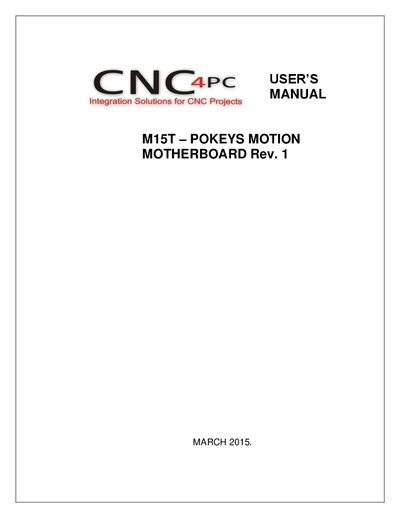

The Pokeys M15T Motion Mother Board User Manual provides an overview, features, specifications, jumper settings, pinout and dimensions for integrating the…
The M15T Motion Mother Board is a motherboard designed for Pokeys56U, Pokeys56E and Pokeys57E core boards. It enables integration with breakout boards and controls up to four axes with various I/Os.
The manual covers the board's features, power requirements, jumper configurations for power source and voltage selection, detailed pinout information for all four ports, and the physical dimensions of the board.
| Power Requirements | 5 VDC, 200 mA |
|---|
The board needs an external 5 V DC supply capable of providing at least 200 mA.
Set the power‑source jumper to the position shown in the manual and connect the external 5 V supply to the designated terminals.
For both Ethernet and USB, supply 5 V to the Pokeys pin and adjust the corresponding jumper as illustrated.
