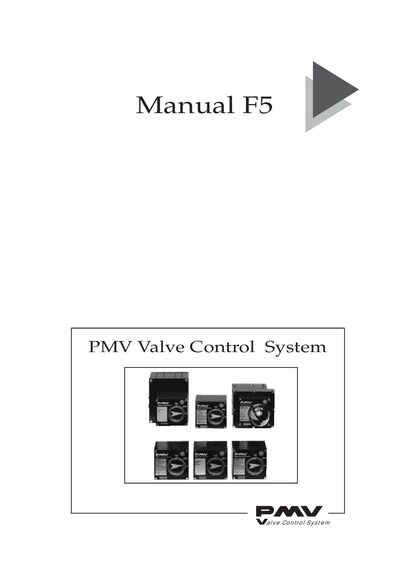

The PMV F5 Valve Control System manual provides storage, handling, mounting, installation, calibration and troubleshooting instructions.
This manual covers the PMV F5 feedback unit, describing compliance with EC directives and the required approvals for both standard and explosion‑proof enclosures. It explains proper storage conditions, handling precautions, and the need for a storage seal before shipment.
Detailed procedures are provided for mounting the unit on P5, EP5, P‑2000/2020 positioners or on actuators, making electrical connections, calibrating the potentiometer and 4‑20 mA position transmitter, and troubleshooting common issues such as signal loss or incorrect output.
