The Plink AI Y‑C17‑DEV carrier board supports Jetson Xavier NX, Orin NX and Orin Nano modules and provides wide‑temperature components, multiple interfaces…

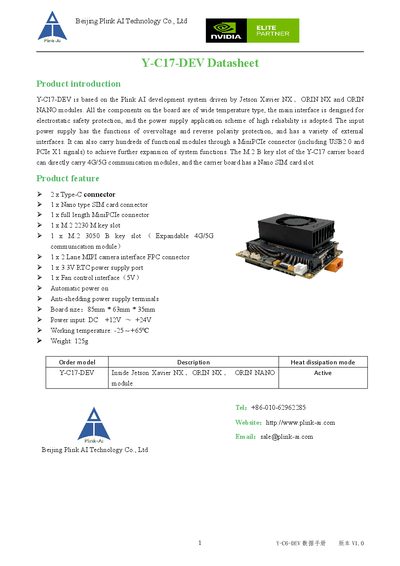

The Y‑C17‑DEV is a carrier board built on the Plink AI development system and is driven by NVIDIA Jetson Xavier NX, Orin NX, and Orin Nano modules. All components are rated for wide temperature operation and the main interface includes electrostatic safety protection. The power supply scheme offers high reliability with over‑voltage and reverse‑polarity protection.
The board provides extensive expansion options: two Type‑C connectors, a full‑length MiniPCIe slot (USB 2.0 and PCIe x1), an M.2 B‑key slot for 4G/5G modules, an M.2 M‑key slot, a 2‑lane MIPI camera FPC, a 3.3 V RTC port, a fan‑control interface, and a Nano‑SIM slot. Mechanical specs are 85 mm × 63 mm × 35 mm, weight 125 g, power input DC +12 V ~ +24 V, and operating temperature –25 °C ~ +65 °C.
| Board size | 85 mm × 63 mm × 35 mm |
|---|---|
| Power input | DC +12 V ~ +24 V |
| Working temperature | -25 °C ~ +65 °C |
| Weight | 125 g |
It can be driven by Jetson Xavier NX, Orin NX, and Orin Nano modules.
The board accepts a DC input of +12 V to +24 V.
