Platinum Tools 10Gig Termination Kit Instructions

Instructions for terminating network cables using the Platinum Tools 10Gig Termination Kit, including wire configuration, crimping, and tool usage.

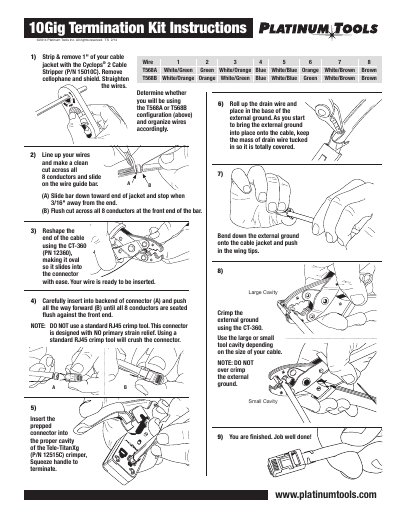

Platinum Tools 10Gig Termination Kit Instructions - cover page
Brand
Platinum Tools
Category
Other Electronics
Document type
User Manual
Language
English
Pages
1
File format
PDF
File size
1 MB
Published
17 October, 2026
Updated
17 October, 2026
MD5 checksum
B497CB9E4F6E39B3F4A1FE26BBCE6F63
PDF
Platinum Tools 10Gig Termination Kit Instructions PDF

About this manual

This document provides step-by-step instructions for terminating network cables using the Platinum Tools 10Gig Termination Kit. It details the preparation of the cable, including stripping the jacket and organizing wires according to T568A or T568B wiring configurations. The guide specifies the use of the Cyclops 2 Cable Stripper and the Tele-TitanXg crimper for the termination process.

What's inside

  • T568A and T568B wiring configurations
  • Cable preparation and stripping
  • Wire organization
  • Connector insertion
  • External ground crimping
  • Tool usage (CT-360, Tele-TitanXg, Cyclops 2)

Specifications

Wiring ConfigurationsT568A and T568B
Stripper ToolCyclops 2 Cable Stripper
Crimper ToolTele-TitanXg
Cable Stripper ToolCT-360

Frequently asked questions

What wiring configurations are supported?

The kit supports T568A and T568B wiring configurations.

Can a standard RJ45 crimp tool be used?

No, a standard RJ45 crimp tool should not be used as it will crush the connector.

How much cable jacket should be stripped?

You should strip and remove 1 inch of the cable jacket.
