Planet Audio P9759B Multimedia Receiver User Manual

This user manual provides installation, wiring, and operation instructions for the Planet Audio P9759B Bluetooth multimedia receiver with a 7-inch touchscreen.

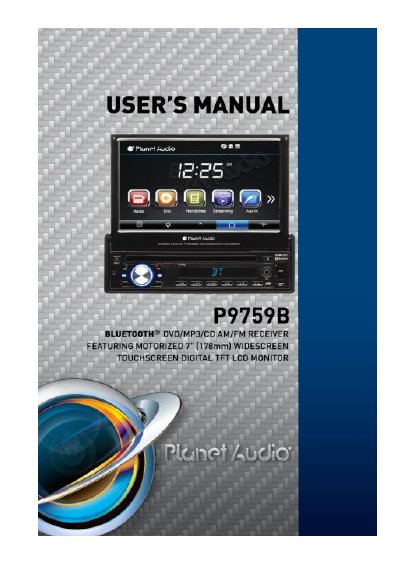

Planet Audio P9759B Multimedia Receiver User Manual - cover page
Brand
Planet Audio
Category
Car
Document type
User Manual
Language
English
Pages
27
File format
PDF
File size
4.1 MB
Published
16 October, 2026
Updated
16 October, 2026
MD5 checksum
BD7FAA5EE7A564AD5E7A588618CA4BAB
PDF
Planet Audio P9759B Multimedia Receiver User Manual PDF

About this manual

The Planet Audio P9759B is a Bluetooth multimedia receiver featuring a motorized 7-inch widescreen touchscreen digital TFT LCD monitor. It supports various media formats including DVD, CD, MP3, and USB/SD storage, as well as AM/FM radio reception.

What's inside

  • Accessories
  • Unit Installation
  • Wire Connection
  • Parking Brake Connection
  • Speaker Connection
  • Button Description
  • DVD Operation
  • USB/SD Operation
  • Bluetooth Operation
  • General Specification

Specifications

Power supply11~16V DC
Maximum power output85W x 4 channels
Screen size7.0 inch
Resolution800*480 pixel
FM Frequency range (Europe)87.5 —108MHz
AM Frequency range (Europe)522-1620
USB typeUSB 2.0 full speed
Working temperature range-4F -- +140°F

Frequently asked questions

What is the power supply requirement for the receiver?

The receiver requires a power supply of 11 to 16V DC.

What is the maximum power output of the unit?

The maximum power output is 85W per channel across 4 channels.

Is a parking brake connection required to view videos?

Yes, the parking brake wire must be connected to view videos, and the vehicle must be stopped.
