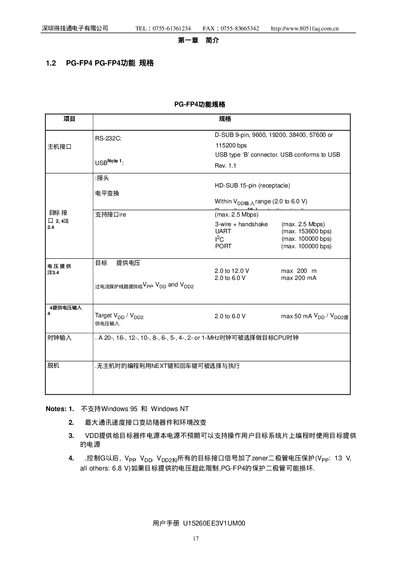

The PG-FP4 Programmer User Manual provides configuration, communication interfaces, programming modes, and software setup instructions.
The PG-FP4 programmer supports RS‑232C (9‑pin D‑SUB) and a USB type‑B connector for communication, offering baud rates from 9600 up to 115200 bps for RS‑232 and up to 153600 bps for UART. Power supplies include VDD ranges of 2.0‑6.0 V (max 200 mA) and VPP of 13 V, with internal protection circuits.
The device contains 2 MB of flash memory for target programs, which can be split into two independent areas. Configuration and programming parameters are stored in EEPROM and can be managed via a GUI that saves settings in INI files and logs communication in ASCII files.
| RS‑232C Interface | D‑SUB 9‑pin, 9600‑115200 bps |
|---|---|
| USB Interface | Type B connector |
| VPP Voltage | 13 V (others 6.8 V) |
| Internal Flash Memory | 2 MB (or more) |
| UART Speed | up to 153600 bps |
| I2C Speed | up to 100000 bps |
The programmer contains 2 MB of flash memory, which can be expanded if needed.
