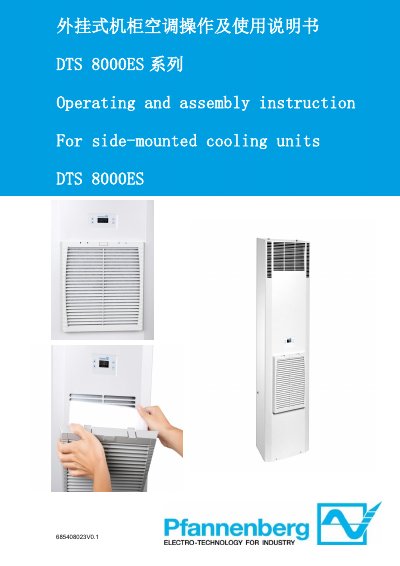

This manual provides installation, operation, and maintenance instructions for the Pfannenberg DTS 8000ES side-mounted cabinet air conditioner series.
This document serves as the operating and assembly instruction for the Pfannenberg DTS 8000ES series of side-mounted or door-mounted cabinet air conditioners. It covers the scope of delivery, general safety information, functional principles, and technical specifications. The unit is designed for cabinet cooling with an IP54 protection rating and operates within an external ambient temperature range of +15°C to +55°C. This manual is written in Chinese.
| Internal Control Temperature | +25°C ~ +45°C |
|---|---|
| Protection Rating | IP54 |
| Supply Voltage | 2~400V AC (optional) |
| Cooling Hysteresis | 5 degrees |
Condensate should be drained via a water pipe, or evaporated if the unit has a condensate evaporator option.
The high temperature alarm point is 15°C higher than the internal setting temperature (t1).
