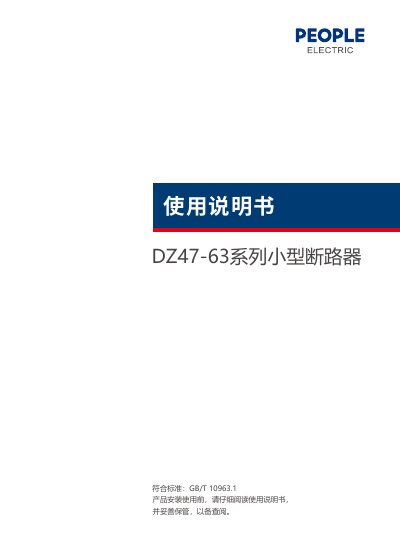

People Electric DZ47-63 Miniature Circuit Breaker User Manual

About this manual

This document is the user manual for the People Electric DZ47-63 series high-breaking capacity miniature circuit breaker. It details the product's application in AC 50Hz/60Hz circuits up to 400V and 63A, featuring overload and short-circuit protection. The manual outlines normal working conditions, installation requirements using TH35-7.5 rails, and specific precautions regarding wiring and environmental factors. This manual is written in Chinese.

What's inside

• Usage and Scope
• Normal Working and Installation Conditions
• Model Designation
• Classification
• Main Technical Data
• Structure and Working Principle
• Dimensions and Installation
• Warranty and After-sales Service
• Ordering Instructions

Frequently asked questions

What is the maximum rated working voltage for this circuit breaker?

The rated working voltage is up to 400V.

What is the maximum rated current available for this model?

The rated current is up to 63A.

What is the required tightening torque for the terminals?

The tightening torque must be between 2.5 and 3 Nm.
