Product data sheets for Pentosin Antifreeze fluids A1 through NF, detailing specifications, attributes, and application recommendations for various Asian…

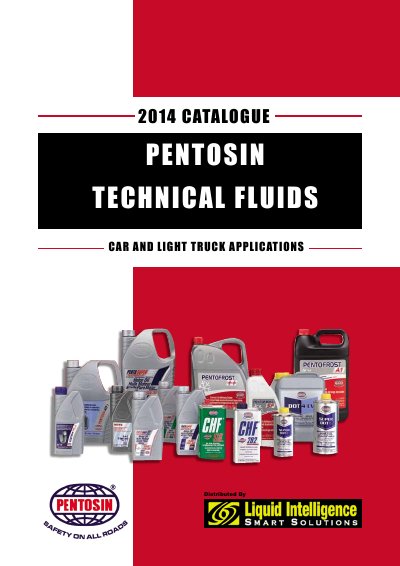

This document serves as a technical catalogue for Pentosin Automotive Fluids, specifically focusing on Antifreeze products. It provides detailed product data sheets for various formulations including Pentofrost A1, A2, A3, A4, ++, and NF. The text describes the technology type, such as phosphated organic acid technology (OAT) and hybrid organic acid technology (HOAT), and specifies their suitability for different vehicle manufacturers and coolant colors (red, green, blue).
The document includes specific technical attributes for each product variant, such as appearance color, density, freezing points, boiling points, and pH values. It also lists OE reference numbers and recommendations for specific makes like Toyota, Nissan, Honda, and Mercedes-Benz, advising users to consult vehicle owner manuals for specific requirements.
| Technology Type | Phosphated organic acid technology (phosphated OAT) |
|---|---|
| US Market Category | HOAT (hybrid organic acid technology) |
| Appearance | Red |
| Density at 20 °C | 1127 kg/m³ |
| Freezing Point | <-15°C/<5 °F |
| Flash Point | 128°C/262 °F |
| Boiling Point | >173.5°C/>344.3 °F |
| Water Content Max | 5% |
| pH Value | 7.9 |
| Mixing Ratio With Water | 50/50 |
It is suitable for all Asian vehicles using “red” Antifreeze/Coolant.
No, do not mix with other coolants (especially silicated coolants) as this may cause gel formation.
Yes, Pentofrost A3 is a PRE-DILUTED antifreeze for Asian vehicle applications.
The freezing point with water is -37.6°C/-35.7 °F.
