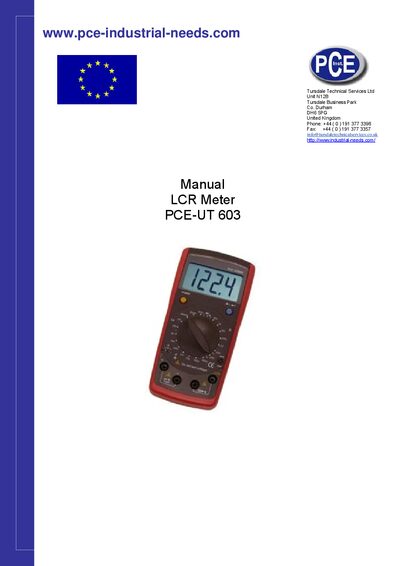

Operating manual for the PCE UT603 handheld LCR meter with safety, measurement and maintenance instructions.
The PCE UT603 LCR Meter manual provides safety guidelines, detailed measurement procedures for resistance, diode, continuity, capacitance, inductance and transistor hFE, as well as information on the meter’s structure, functional buttons and display symbols.
It also includes general specifications, accuracy data, battery and fuse replacement instructions, and maintenance recommendations to ensure reliable operation in the field.
| Maximum Display | 1999 |
|---|---|
| Measurement Speed | 2-3 updates per second |
| Operating Temperature | 0 °C – 40 °C |
| Storage Temperature | -10 °C – 50 °C |
| Battery Type | 9 V alkaline (NEDA 1604, 0062, 6F22, 006P) |
| Dimensions (HxWxL) | 172 × 83 × 38 mm |
| Weight | ≈310 g (battery included) |
| Fuse Protection | 0.315 A, 250 V fast type fuse, 5 × 20 mm |
Do not apply more than 30 V rms between the terminals to avoid electric shock and damage.
Insert the red test clip into the Ω terminal and the black clip into COM, set the rotary switch to the desired Ω range, connect the clips across the component, and read the value on the display.
