Technical data sheet for Panasonic high reliability glass epoxy multi-layer materials, covering dielectric, thermal, and physical properties.

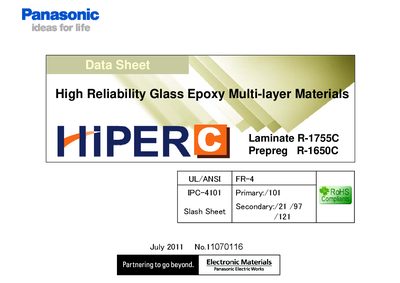

This document provides detailed technical specifications for Panasonic Laminate R-1755C and Prepreg R-1650C, which are high reliability glass epoxy multi-layer materials. The data covers dielectric characteristics, thermal properties, and physical properties under various conditions and frequencies.
| Material Type | High Reliability Glass Epoxy Multi-layer Materials |
|---|---|
| Flammability Rating | 94V-0 |
| Dielectric Constant (Dk) @ 1GHz | 4.3 |
| Dissipation Factor (Df) @ 1GHz | 0.015 |
| Glass Transition Temperature (Tg) | > 135 ℃ |
| Thermal Decomposition Temperature (Td) | > 260 ℃ |
| Peel Strength | 1.5 kN/m |
No, the data above show actual values and are not guaranteed.
The test method for Dielectric Constant is IPC TM-650 2.5.17.1.
The nominal thickness for the 1080 cloth style is 25 μm (1 ply).
