Panasonic iWeld5 is an intelligent welding management platform that digitizes welding processes, improves quality and boosts production efficiency.
The iWeld5 system provides a complete digital solution for welding production, covering data collection, process planning, dispatch, inventory, execution and inspection. It supports both standard and customized versions, integrating with Panasonic welding machines and robots to enable real‑time monitoring, reporting and analysis.

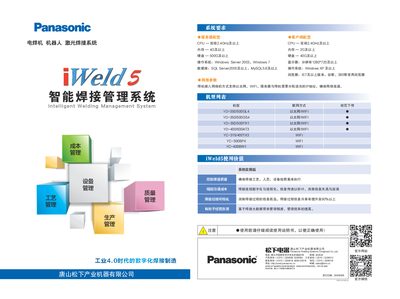

Key features include server and client hardware requirements, multi‑database support, high concurrency for over 1,000 online users, and extensive interfaces such as WebService, Socket and API. The platform runs on Windows environments and offers bilingual (Chinese/English) support, making it suitable for Industry 4.0 factories. This manual is written in Chinese.
| Server CPU | Dual‑core 2.4 GHz or higher |
|---|---|
| Server Memory | 4 GB or higher |
| Server Disk | 500 GB or higher |
| Client CPU | Dual‑core 2.4 GHz or higher |
| Client Memory | 2 GB or higher |
| Client Disk | 40 GB or higher |
| Server OS | Windows Server 2003, Windows 7 |
| Client OS | Windows XP or later |
| Supported Browsers | IE7+, Chrome, 360 etc. |
| Supported Welding Machines | YD‑350/500GL4, YD‑350/500GS4, YD‑350/500FR1, YD‑400/630AT3, YC‑315/400TX3, YC‑300BP4, YC‑400BW1 (Ethernet/Wi‑Fi) |
| Maximum Concurrent Users | Over 1,000 online users |
| Supported Databases | SQL Server, MySQL |
The server needs a dual‑core 2.4 GHz CPU or higher, at least 4 GB of RAM and a 500 GB hard drive.
iWeld5 supports YD‑350/500GL4, YD‑350/500GS4, YD‑350/500FR1, YD‑400/630AT3, YC‑315/400TX3, YC‑300BP4 and YC‑400BW1 models.
The system can support more than 1,000 online users at the same time.
Clients must run Windows XP or later and use IE7+ or other common browsers such as Chrome or 360.
