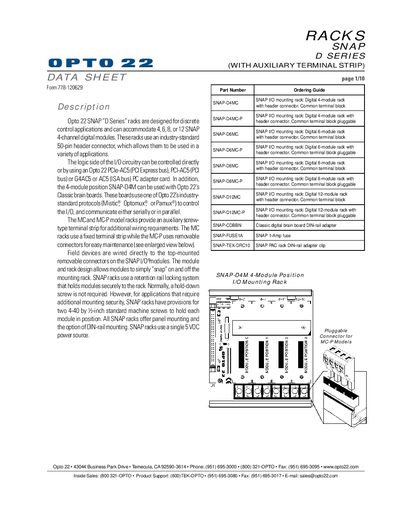

The Opto 22 SNAP D Series rack datasheet provides specifications, dimensions, power requirements, and mounting options for the SNAP‑D4M, D6M, D8M, and D12M…
The SNAP D Series racks are designed for discrete control applications and can accommodate 4, 6, 8, or 12 SNAP 4‑channel digital modules. All models use an industry‑standard 50‑pin header connector and offer both panel mounting and DIN‑rail mounting options. The racks draw power from a single 5 VDC source and include optional auxiliary terminal strips for additional wiring.
Dimensions vary by model, with overall lengths ranging from 4.19 in (106.43 mm) for the SNAP‑D4M to 10.74 in (272.8 mm) for the SNAP‑D12M. Power consumption increases with module count, from a maximum of 200 mA for the 4‑module rack to 1.2 A for the 12‑module rack. Detailed pinout diagrams, terminal strip usage, and mounting guidelines are provided throughout the sheet.
| Power Supply Voltage | 5 VDC ± 0.1 VDC |
|---|---|
| Maximum Power Consumption (SNAP‑D4M) | 200 mA max (700 mA with brain board) |
| Maximum Power Consumption (SNAP‑D6M) | 300 mA max |
| Maximum Power Consumption (SNAP‑D8M) | 400 mA max |
| Maximum Power Consumption (SNAP‑D12M) | 1 200 mA max |
| Operating Temperature Range | 0 °C to 70 °C |
| Relative Humidity | 95 % non‑condensing |
| Overall Length (SNAP‑D8M) | 7.74 in (196.6 mm) |
The rack operates from a single 5 VDC power source with a tolerance of ±0.1 VDC.
The SNAP‑D8M rack is 7.74 inches (196.6 mm) long.
Yes, all SNAP D Series racks offer panel mounting and the option of DIN‑rail mounting.
The SNAP‑D12M model provides 12 module positions.
