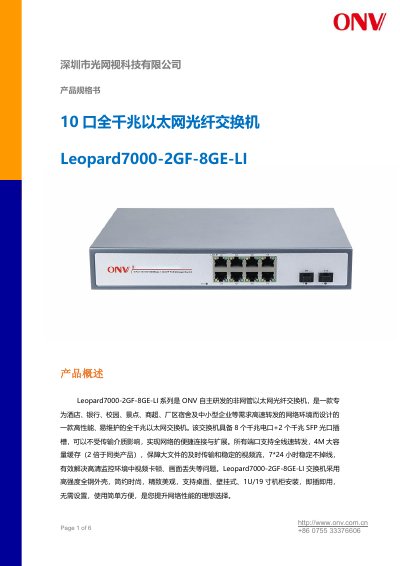

A product datasheet for the ONV Leopard7000-2GF-8GE-LI, a non-managed 10-port Gigabit Ethernet switch with 2 SFP slots designed for high-speed forwarding.
The ONV Leopard7000-2GF-8GE-LI is a non-managed 10-port Gigabit Ethernet fiber optic switch designed for high-speed forwarding in environments such as hotels, banks, schools, and small to medium-sized enterprises. It features 8 Gigabit RJ45 ports and 2 Gigabit SFP slots, supporting full-duplex line-rate forwarding and a large 4MB buffer to ensure stable video streaming and large file transfers. This manual is written in Chinese.
| Ports | 8x 10/100/1000Base-T RJ45, 2x 1000Base-X SFP slots |
|---|---|
| Buffer Size | 4MB |
| Backplane Bandwidth | 20Gbps |
| Packet Forwarding Rate | 14.88Mpps @ 64byte |
| MAC Address Table | 8K |
| Power Input | AC 100-240V 50-60Hz |
| Operating Temperature | -20 to +55°C |
| Dimensions | 270*181*44.5mm |
No, the switch is plug-and-play and requires no configuration.
Up to 40KM for 1310nm wavelength and 120KM for 1550nm wavelength.
The standby power consumption is less than 8W and full load power consumption is less than 12W.
