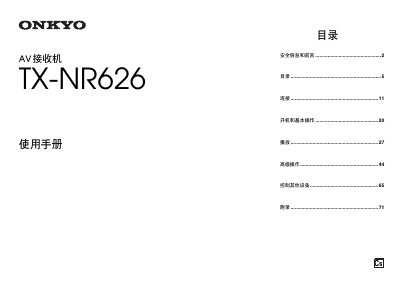

This is the user manual for the Onkyo TX-NR626 AV receiver, covering setup, operation, and advanced features in Chinese.
This document serves as the official user guide for the Onkyo TX-NR626 AV Receiver. It provides comprehensive instructions on connecting audio/video components, operating the device via its remote control or front panel, and utilizing various playback sources including USB, network streaming, and Bluetooth.
The manual details advanced configuration options such as Audyssey MultEQ room correction, speaker setup, and listening mode presets. It also includes troubleshooting guides, firmware update procedures, and technical specifications for the receiver's amplifier power and connectivity ports. This manual is written in Chinese.
| Amplifier Power (IEC) | 160 W/channel @ 6 ohms |
|---|---|
| Amplifier Power (JEITA) | 175 W/channel @ 6 ohms |
| Frequency Response | 5 Hz to 100 kHz |
| HDMI Inputs | 6 inputs and 2 outputs |
| Digital Inputs | 3 digital inputs (1 optical/2 coaxial) |
The manual recommends using the provided indoor FM antenna.
The amplifier delivers 160 W per channel at 6 ohms according to IEC standards, or 175 W per channel at 6 ohms according to JEITA standards.
You must maintain a height of 20 cm (8 inches) between the top of the equipment and the surface above it.
The antenna gain must be less than 10 dBi to comply with safety regulations for this area.
