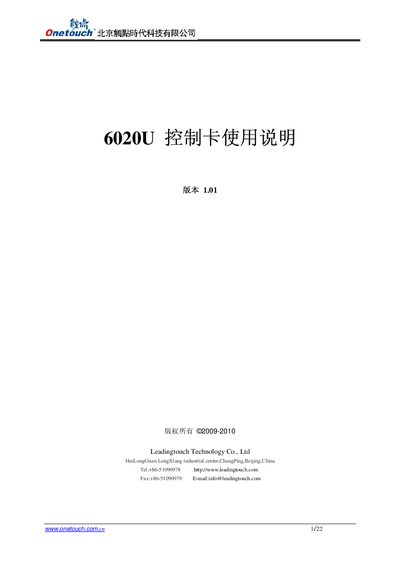

The Onetouch 6020U control card user manual provides hardware installation, specifications, LED indicators, interface definitions, jumper settings…
This manual explains how to install and configure the Onetouch 6020U control card for touch screen systems. It covers hardware installation, cable connections, USB and RS‑232 interfaces, jumper settings for different screen sizes and drivers, and step‑by‑step driver installation with calibration.
The document also lists the card's electrical, physical, and environmental specifications, LED status behavior, certification compliance, and a detailed FAQ that helps diagnose common issues such as no response, indicator light behavior, and calibration problems. This manual is written in Chinese.
| Operating Voltage | +5 VDC (+4.75 to +5.25 VDC) |
|---|---|
| Standby Current | 85 mA at +5 VDC |
| Average Working Current | 105 mA |
| Average Power Consumption | 0.45 W |
| Peak Current (50 ms) | 500 mA |
| Noise Voltage (<1 MHz) | <100 mV p‑p |
| Noise Voltage (>1 MHz) | <50 mV p‑p |
| Resolution | 4096 × 4096 |
| Conversion Time | ≈10 ms |
| MTBF | >1,543,000 hours |
| Operating Temperature | 0 °C to 65 °C |
| Storage Temperature | -25 °C to 85 °C |
| Operating Humidity | 10 % to 90 % RH, non‑condensing |
| Maximum Operating Altitude | 10,000 ft |
