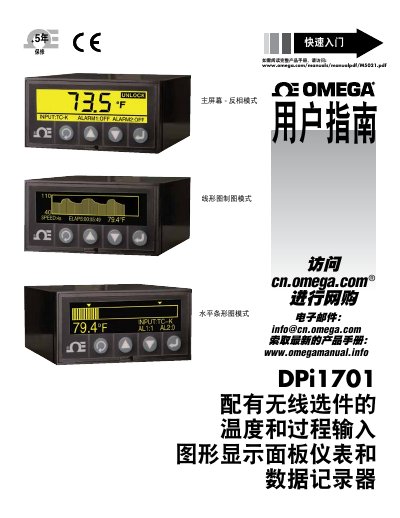

This manual covers the operation, specifications, and wiring connections for the OMEGA DPi1701 graphical display panel instrument and data logger.
The OMEGA DPi1701 is a graphical display panel instrument and data logger equipped with optional wireless and USB connectivity. It supports various input types including thermocouples (J, K, E, T, R, S), RTDs (Pt100), and process variables like voltage and current. The device features a graphical user interface for displaying linear graphs, bar charts, and data logging with configurable parameters. This manual is written in Chinese.
| Thermocouple Accuracy (J, K, E, T) | 0.5ºC (0.9ºF) |
|---|---|
| Thermocouple Accuracy (R, S) | 2.5°C (4.5°F) or 0.5% full scale |
| RTD Accuracy | 0.5ºC (0.9ºF) |
| Process Input Accuracy | 0.1% of reading |
| Sampling Rate | 4 samples per second |
| Power Supply | 90/240 Vac +/-10%, 50-400 Hz |
| Operating Temperature | 0 ～ 50ºC (32 ～ 122ºF) |
| Dimensions | 48 x 96 x 118mm (1.89 x 3.78 x 4.65") |
OMEGA guarantees the equipment against material and workmanship defects for 13 months from the date of purchase.
The RTD input is for 100 Ω platinum wire, supporting 2-wire or 3-wire configurations.
