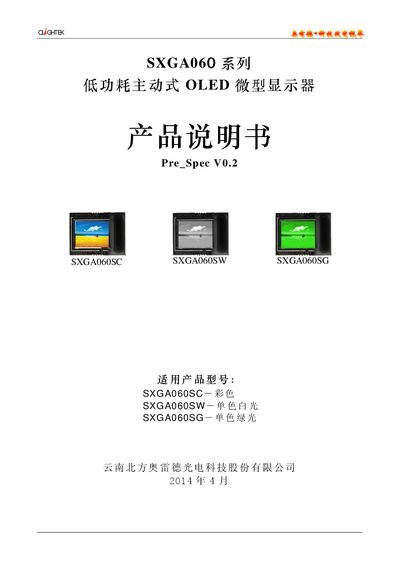

The OLiGHTEK SXGA060 OLED microdisplay manual details features, specifications, interface pinout, electrical characteristics, and operation guidelines.
The SXGA060 series from OLiGHTEK is a low‑power, active‑matrix OLED microdisplay available in color, white‑light and green‑light versions. It offers a 0.6‑inch visual area with a 1280×1024 (SXGA) resolution and high pixel density using a 0.18 µm CMOS process.
This manual provides a complete description of the device, including product features, mechanical dimensions, pixel arrangement, functional block diagram, 40‑pin connector definition, electrical ratings, register map, and recommended handling, cleaning, and storage procedures. This manual is written in Chinese.
| Resolution | 1280×1024 (SXGA) |
|---|---|
| Pixel size | 9.3 µm × 9.3 µm |
| Typical power consumption | < 200 mW |
| Operating temperature range (standard) | -40 °C to +65 °C |
| Typical brightness | > 70 cd/m² (color) / > 100 cd/m² (white) |
| Contrast ratio | > 10 000:1 |
| Supply voltage / max current | 5.0 V @ 200 mA |
| I/O logic level | 1.8 V – 3.3 V |
| Connector pin count | 40 pins |
The standard operating temperature range is –40 °C to +65 °C.
Typical power consumption is less than 200 mW.
The device uses a 40‑pin connector.
It is compatible with ITU‑R BT.601/656 and supports 8‑, 16‑, and 24‑bit digital video signals.
