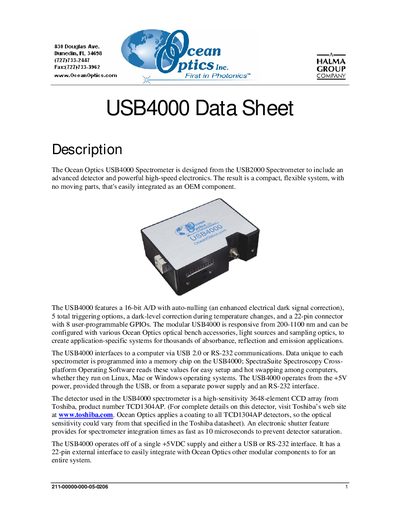

Technical specifications and features of the Ocean Optics USB4000 spectrometer.
The USB4000 is a compact, solid‑state spectrometer that uses a 16‑bit A/D converter, a Toshiba TCD1304AP 3648‑element CCD detector, and offers a wavelength range from 200 nm to 1100 nm. It can be powered from the USB +5 V supply or an external source and communicates via USB 2.0 or RS‑232.
The device provides up to six programmable GPIO pins, multiple trigger modes, and a variety of optics options. Detailed mechanical dimensions, electrical pinout, and software command examples are included for integration into OEM systems.
| Wavelength range | 200 nm – 1100 nm |
|---|---|
| Resolution (FWHM) | ~0.3 – 10.0 nm |
| Power consumption | 250 mA @ 5 VDC |
| Integration time | 10 µs – 65 s |
| A/D converter | 16‑bit, 3 MHz |
| Programmable GPIO pins | 6 user‑programmable digital I/O pins |
It operates from a single +5 VDC supply provided via the USB connection or from an external 5‑V power source.
The spectrometer provides six user‑programmable digital input/output pins.
