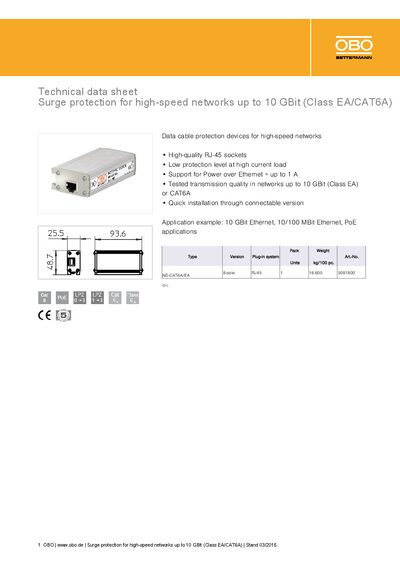

Technical data sheet for OBO ND-CAT6A/EA8-pole RJ45 surge protector, detailing specifications for 10 GBit Ethernet and PoE applications.
The OBO ND-CAT6A/EA8-pole RJ45 device provides surge protection for high‑speed networks up to 10 GBit (Class EA/CAT6A). It features high‑quality RJ‑45 sockets, low protection level at high current load, and supports Power over Ethernet up to 1 A, making it suitable for 10 GBit Ethernet, 10/100 MBit Ethernet, and PoE applications.
Technical specifications include rated arresting surge currents, protection levels, nominal load current, transmission frequency, IP rating, and compliance with IEC 61643‑21. A connection‑circuit diagram and plug‑in RJ45 system are also provided for quick installation.
| Rated arresting surge current (total) | 7 kA |
|---|---|
| Rated arresting surge current (wire‑wire) | 0.15 kA |
| Protection level (wire/earth) | < 700 V |
| Protection level (wire/wire) | < 120 V |
| Nominal load current | 1 A |
| Transmission frequency | 500 MHz |
| Protection rating | IP 10 |
| Testing standard | IEC 61643‑21 |
The device can arrest up to 7 kA total surge current and 0.15 kA for wire‑to‑wire surges.
Yes, it supports PoE with a current up to 1 A.
It is rated for a transmission frequency of 500 MHz.
